Impact crushers

Description

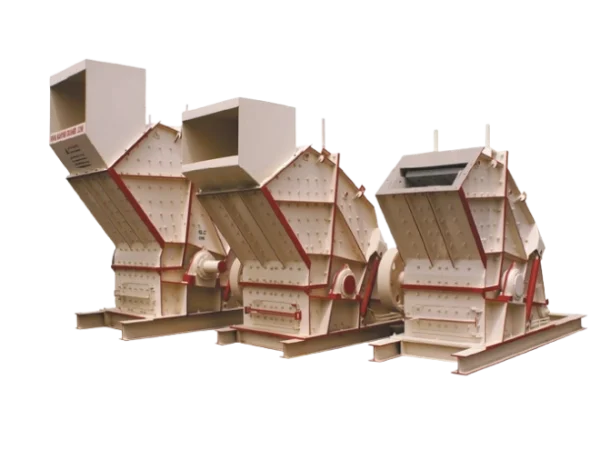

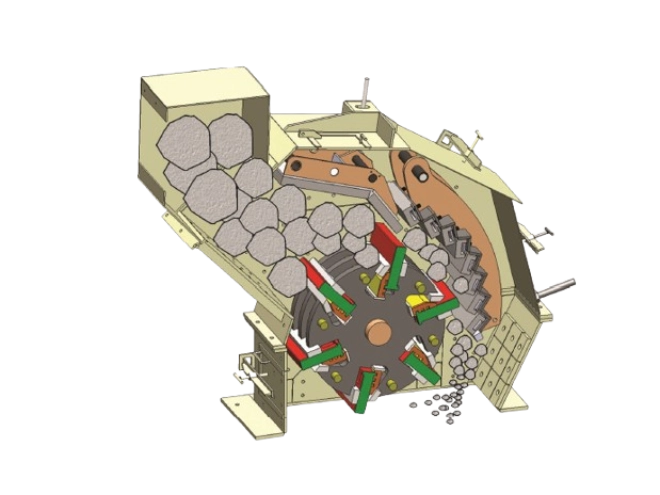

These types of crushers are designed to be used for all kind of soft and medium-hard materials (without silica) such as rocks, gravel and mine stones. Several assembly doors are installed on the body for simplicity of repair. The entire crushing compartment is equipped with easily replaceable highly wear resistant armor plating.

The beaters are shifted into the rotor and retained there by specially designed steel retaining wedges. The impact rocker is equipped in steps with a large number of impact faces with strong beater arms of special alloy steel. The rotor shaft is carried by completely dust proof enclosed roller bearings. Crusher is made up of easily detachable three main parts. Rotor. Fixed bottom assembly which carries rotor and top assembly. Upper assembly can easily by opened by a hydraulic mechanism with two cylinders and reveals the rotor and inner parts. Assembly and dismantling operations were very simplified.

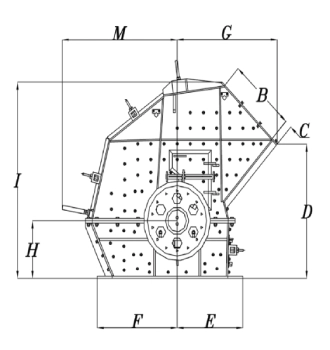

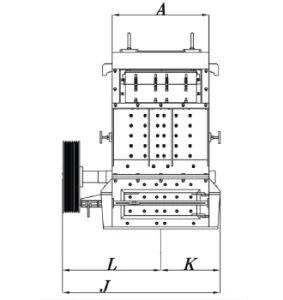

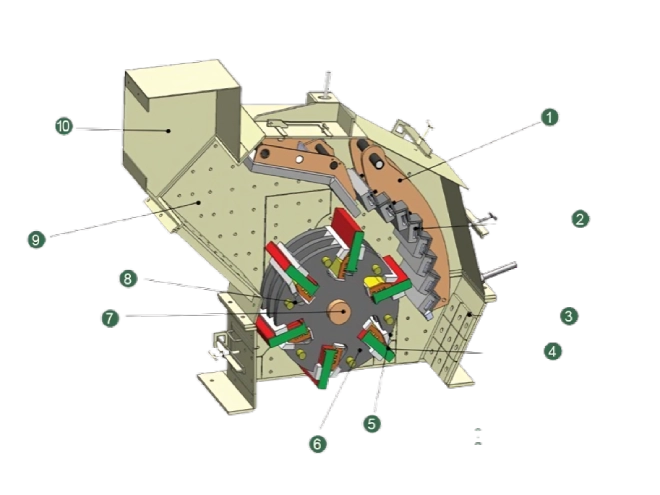

1- Breaker Plate

2- Grinding Plate

3- Liners Hammer

4- Hammer

5- Hammer Locking Device

6- Rotor

7- Rotor Shaft

8- Pin

9- Frime Side Liners

10 – Feeding

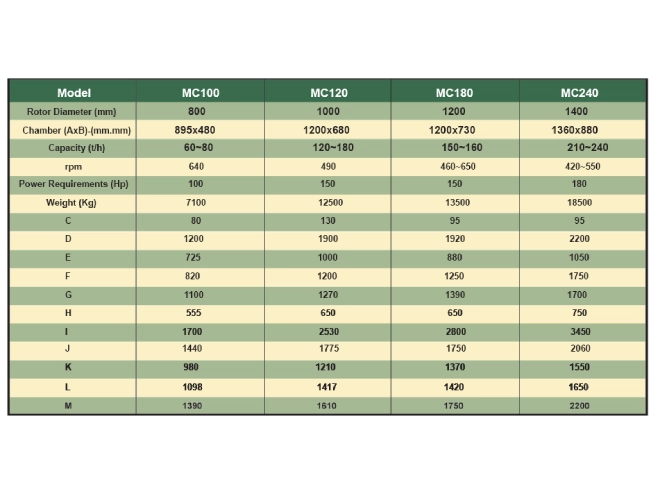

Advantages

1- Beater are three times adjustable and reversible and thus 6-fold usable: 70% wear possible

2- For efficient impact crushing by rotor running at high speed, machine is equipped with a large number of impact faces.

3- Regulation of calibration gap and with it of the oversized pieces by means of an adjustable impact rocker.

4- Small power requirements at high degree of crushing and great performance.

5- Quick (within a few minutes) replacement of beater in the rotor.

6- In hydraulic model, replacement of the shaft, rotor, and interior parts is very easy in a short time.

7- Due to the above enumerated advantages.
